Double Stereo Line Mixer is a line level professional device for parallel processing, with a fixed mix of 50/50 (dry/wet).
Thought as the ultimate and most compact solution in the business to mix up to two stereo returns with incoming dry signal into a single stereo output.
To avoid any ground loop issue, sends and returns are transformer isolated.
The whole unit can operate at nominal +4db line level signal as along instrument level.

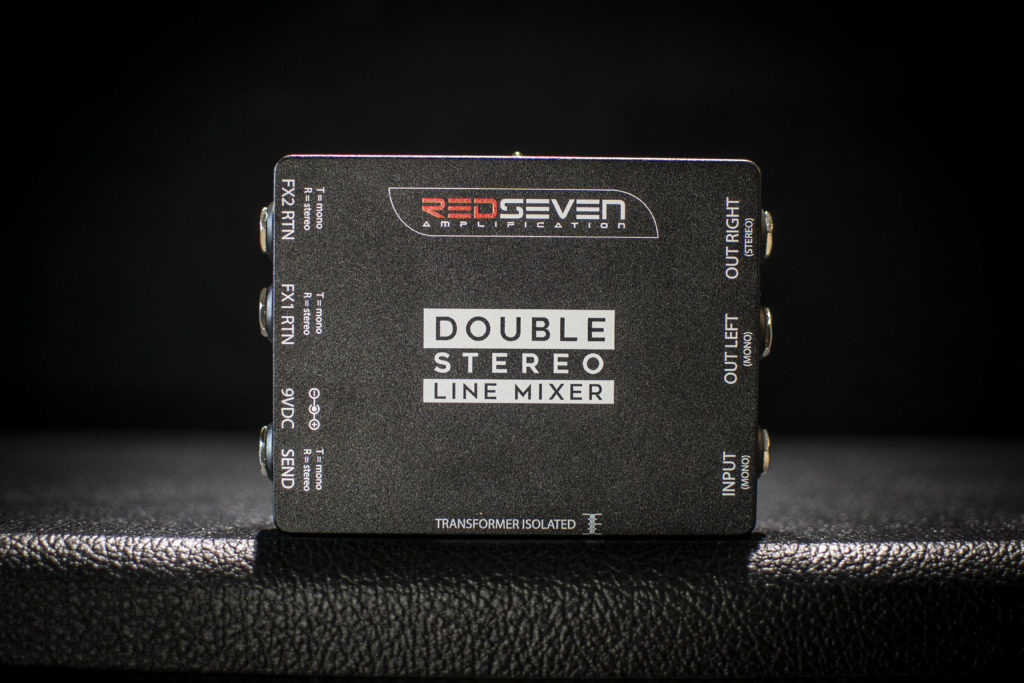

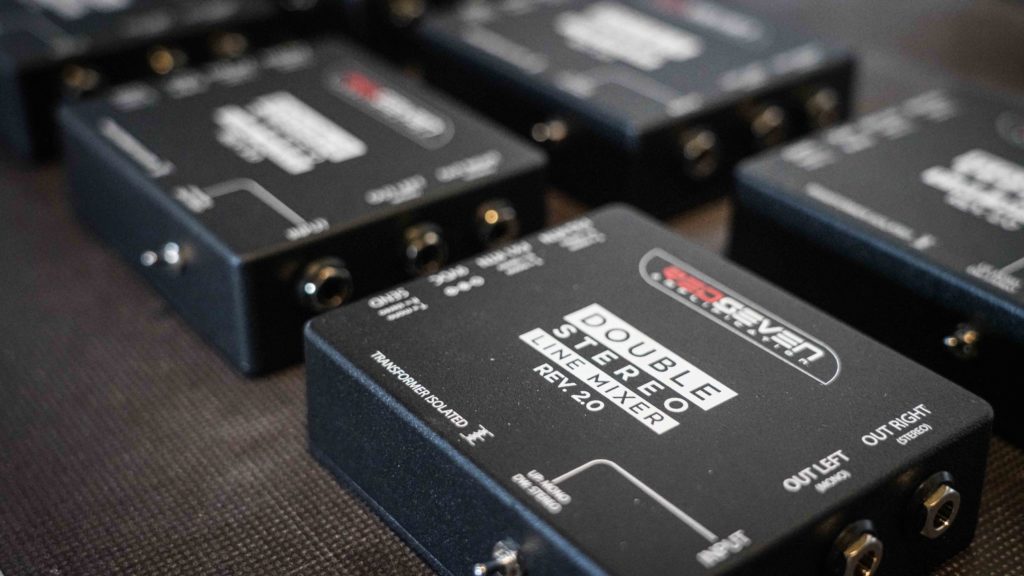

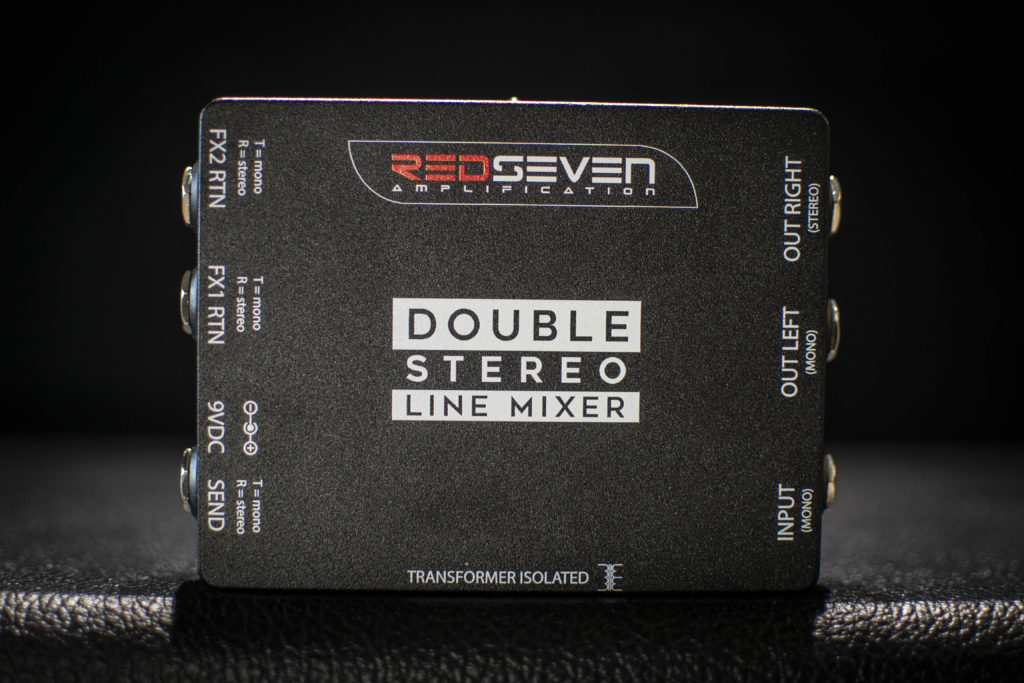

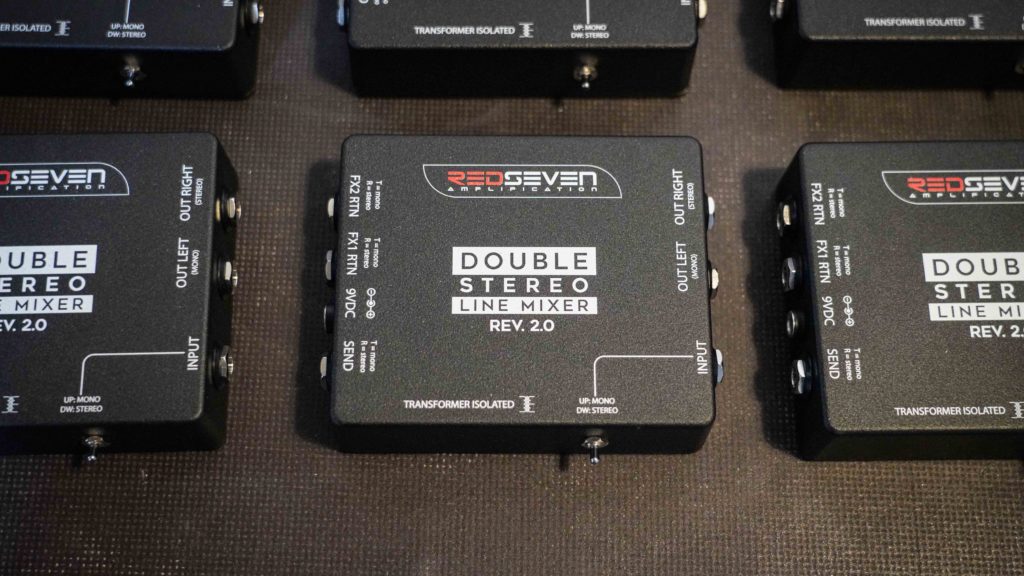

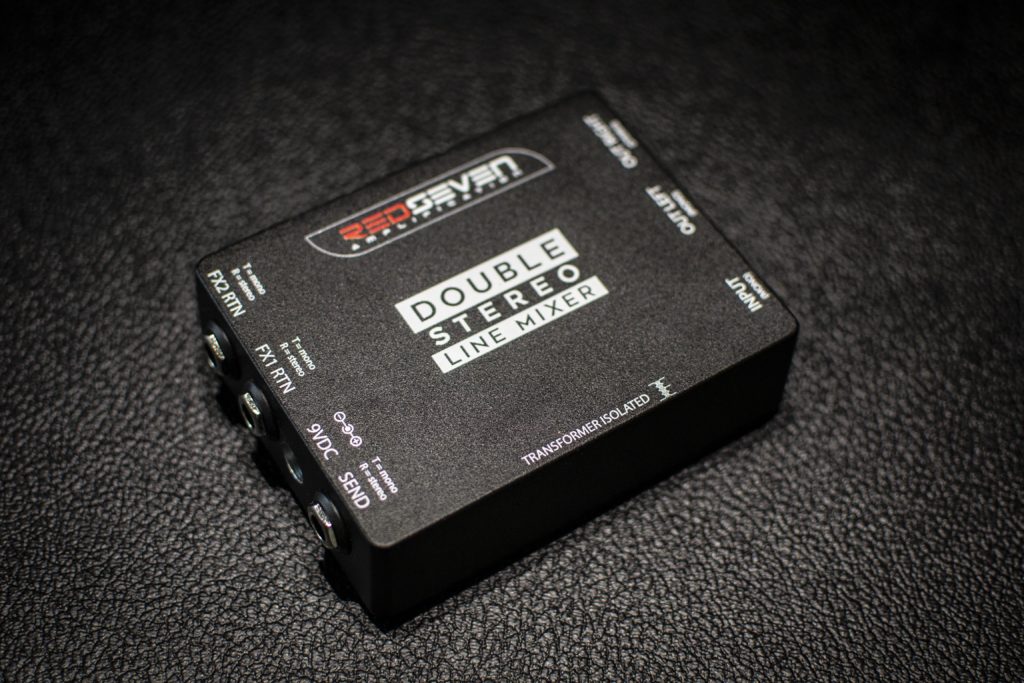

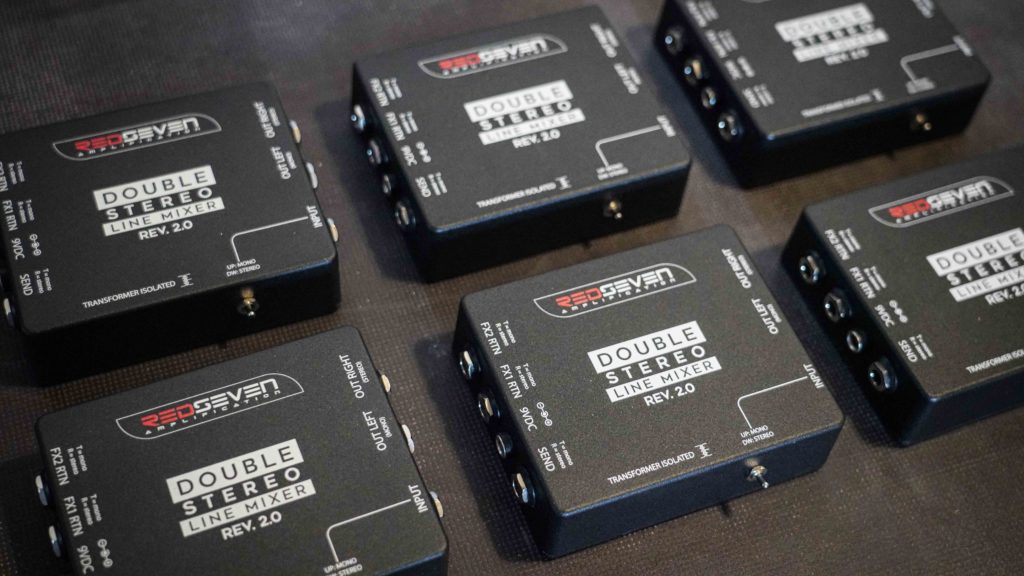

V2.0 can now accept stereo input as well.

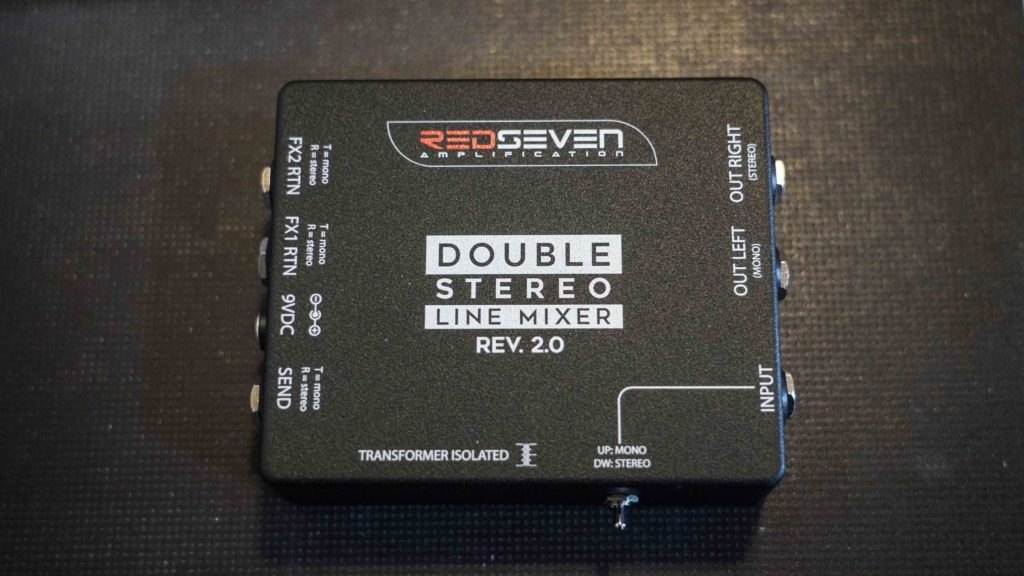

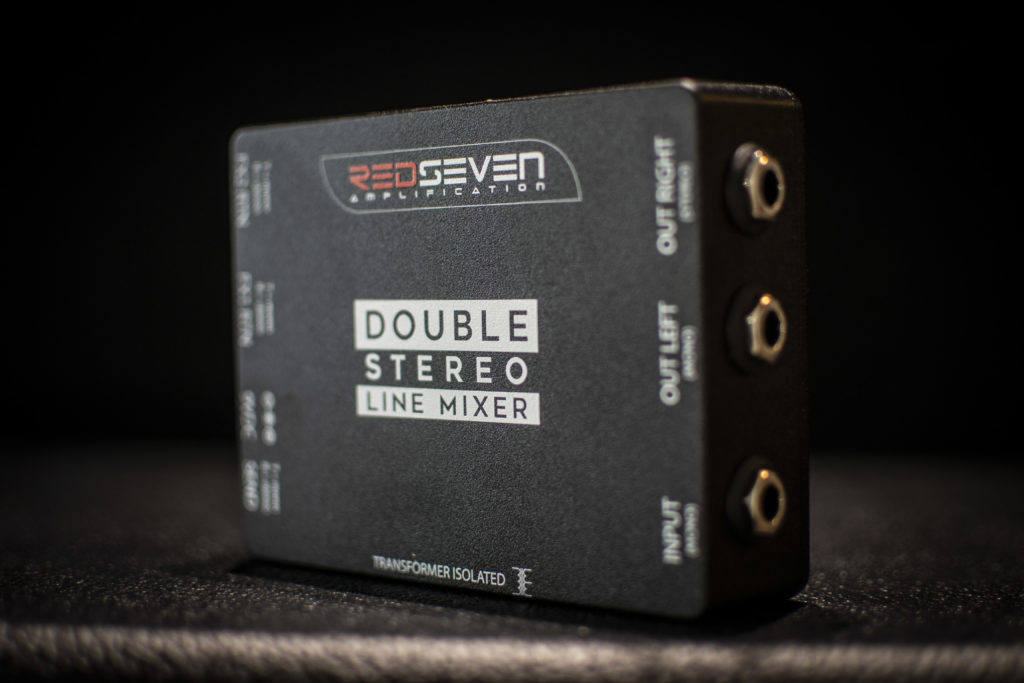

Left Side

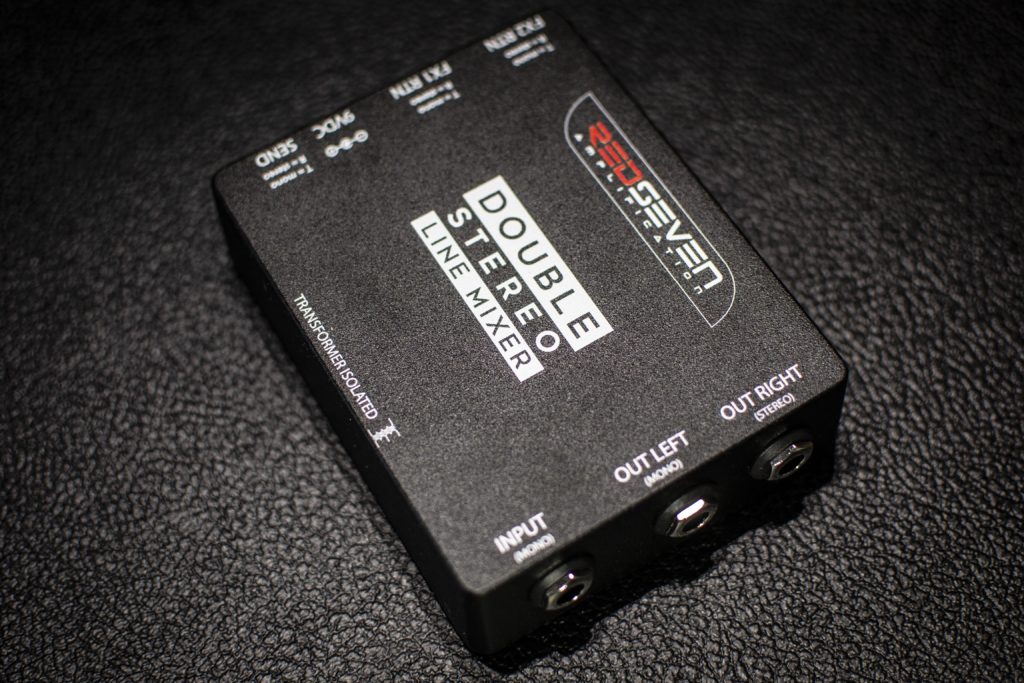

- INPUT (mono or stereo): this is the main input of the mixer.
- OUT LEFT (mono): left output of the system. If only the left output is used (right output is not plugged in) the mixer will sum right and left into this output).
- OUT LEFT (stereo): right output of the system. If right output is plugged in, the stereo signal will be preserved as left and right on respective outputs.
Right Side

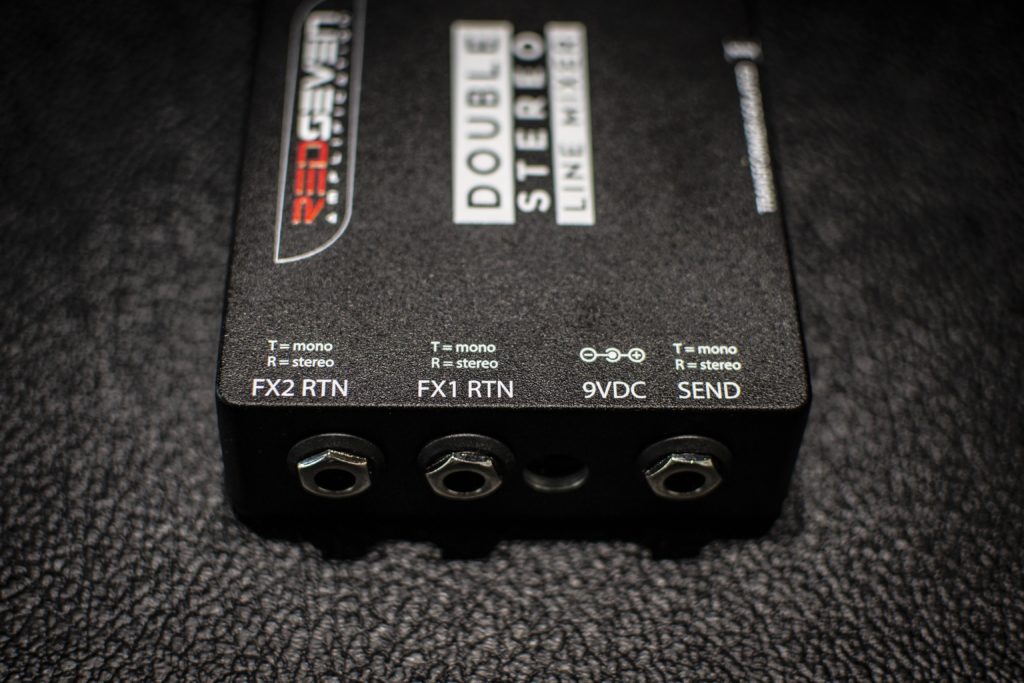

- SEND: this output will split incoming signal from INPUT to other two equal copy. If you use a mono connector, you will have one outgoing signal (on TIP), if you use a stereo connector you will have two equal copies of INPUT signal (first one on TIP, second one on RING).
- 9VDC: 9 volts negative center power supply connector. Use only high quality power supply with at least clean 100mA supply.
- FX1 RETURN: this input will accommodate the mono or stereo return of your first effect. If you’re using a mono effect, a mono cable will work, if you’re using a stereo output from your effect you must use a Y cable to accommodate left and right signal into FX1 RETURN jack.
- FX2 RETURN: this input will accommodate the mono or stereo return of your second effect. If you’re using a mono effect, a mono cable will work, if you’re using a stereo output from your effect you must use a Y cable to accommodate left and right signal into FX2 RETURN jack
