Series vs Parallel Effects: How the Routing Changes Your Sound

Take a delay and a reverb. Connect the delay to the reverb and every repeat can acquire its own reverb tail. Feed both effects separately and the delay repeats do not automatically pass through the reverb. The pedals and settings can be identical while the result changes significantly.

That is the central difference between series and parallel effects. Series routing processes the output of one stage with the next. Parallel routing creates separate branches and combines them later.

Neither arrangement is inherently more professional. Each gives you control over a different relationship between the sounds.

Listen to what feeds the second effect

In a series chain, a delay receives the guitar signal and sends its output to the reverb. If that output contains both dry sound and repeats, the reverb receives both. Reversing the order means the delay receives the reverb’s output instead, potentially repeating its ambience as well as the original attack.

This interaction is often the point. A modulation effect before a delay can imprint movement on what is repeated. An effect placed after the delay can process the repeats as they emerge. Specific results depend on the algorithms, mix controls and bypass behaviour, but the routing establishes which signals can interact.

A series chain is also straightforward to manage: the complete signal travels through each active device. Each device’s dry and wet balance contributes to what the next device receives.

Now separate the branches

In a parallel arrangement, a mixer or suitable processor sends the source to separate effect paths and combines their returns. Delay and reverb can each receive the same source without being placed one after the other.

This gives you independent control over their contributions. Increasing reverb does not necessarily mean adding reverb to the delay repeats. If you want that interaction, you must deliberately provide a route from the delay into the reverb.

Parallel routing can help when you want a strong central sound with several layers around it. It can also become more complicated than necessary for a simple rig. You gain control, but also need to account for dry signal duplication, return levels and bypass behaviour.

Series pedals and a series amp loop are related ideas

A conventional series amplifier loop sends the preamp signal through the equipment connected between send and return. A parallel loop retains a dry path and adds the effect return alongside it.

That describes the amplifier’s loop topology, not necessarily every connection inside the effects system. You can place a parallel mixer within a series loop. Equally, a processor inside a parallel loop can contain several effects in series.

To understand a particular rig, trace one signal from source to destination. Ask where it splits, what processes each branch and where the branches meet again. Our effects loop guide explains the amplifier side of that path.

The dry signal needs a clear owner

If a parallel system already carries a dry signal, returning another dry copy from a delay or reverb changes the combined result. With aligned copies, the level can rise. With timing or phase differences, some frequencies can reinforce while others cancel, creating a hollow or moving character.

Digital latency is one possible source of a timing difference, but the fact that a pedal is digital does not by itself prove that its dry path is delayed. Some devices retain an analog dry path. The practical question is what actually returns to the mixer.

For a parallel ambience setup with a dedicated dry path, the usual starting point is an effects only return. A kill dry mode removes the effect device’s dry contribution. A fully wet mix setting may also work, but bypass behaviour still needs checking. See what kill dry means in a parallel rig before relying on a mix knob alone.

A concrete mixer example

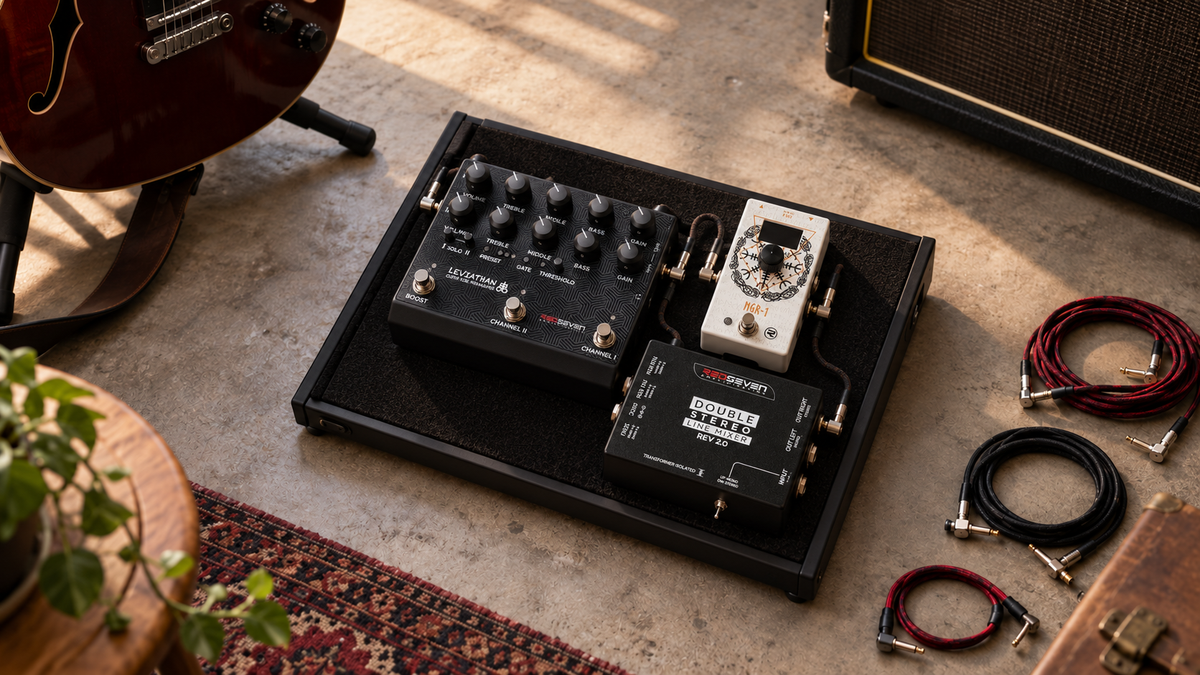

The RedSeven Double Stereo Line Mixer provides a dedicated dry path and two stereo effects returns. Its manual specifies a fixed dry and wet mix structure and instructs users to set the connected effects to 100 percent wet or kill dry.

It is not a mixer with a separate front panel wet level knob for each effect. The output settings of the connected processors matter when balancing their contributions. Start with restrained effect output levels, add one return at a time and listen to what each branch changes.

Its send is transformer isolated, which can help with certain ground related problems in a connected rig. That does not make every possible noise problem disappear, nor does it remove the need for compatible levels.

Parallel is not the same thing as stereo

A mono rig can contain parallel effects. A stereo rig can have all its effects in series. Parallel describes the branching of signal paths. Stereo describes the use of left and right channels.

A stereo return also does not guarantee that the final audience hears stereo. If the signal is summed to mono later, some width effects can change or partially cancel. Check the sound through the actual output configuration you will use, especially before relying on wide modulation or decorrelated ambience.

Choose the relationship, then build the rig

Use series routing when you want effects to process one another or when a simple complete signal path meets the musical goal. Use parallel routing when you want separate effect layers and a deliberately managed dry path.

Before committing a parallel rig to a performance, compare dry only, each effect alone and the combined sound. Then test bypass and your loudest presets. A good routing diagram is only the beginning; the real test is whether every switching state gives you the intended signal.
