Effects Loop Levels: Instrument Level, Line Level and Clipping

A delay that sounds clean in front of an amp can distort in its effects loop. Turning down the final volume makes the distortion quieter but does not remove it. This often points to a level mismatch somewhere before that final volume control.

The way to solve it is to find the first stage that runs out of headroom. Reduce the signal feeding that stage, then recover listening volume later where there is enough clean gain available.

That principle is more useful than assuming every loop is line level, every pedal is instrument level or every setting marked zero means the same thing.

What the labels tell you, and what they do not

Instrument level describes the kind of signal associated with an instrument source, but it is not one fixed voltage. Pickup output, playing dynamics, boosts and active electronics all affect the level.

Line level describes a signal intended to pass between audio devices at a higher operating level than many instrument sources. Two familiar nominal references are +4 dBu and −10 dBV. They use different reference units, so they are not simply two settings separated by 14 dB.

A nominal operating level is also not an input’s maximum permitted peak. Headroom is the margin before the receiving stage clips. A processor may accept peaks well above its nominal operating level; another device may overload at a lower level.

A specification written only as “dB” is incomplete for an absolute voltage reference unless the manufacturer defines what it means. Do not silently interpret every +4 marking as dBu or every −10 marking as dBV.

Three places that can distort

The effect input. A strong send signal can overload the pedal’s input stage or converter. Turning down the pedal’s output afterwards will not undo that distortion. An input control can help only if it attenuates the signal before the stage that is overloading.

Inside the effect. A preset can add gain, resonant boosts or several signals together. The input may be within range while an internal stage or output runs out of headroom. Compare a simple preset with the problematic one and consult the device’s metering and level controls.

The next input. The effect may be clean by itself but send too much level to a return, mixer or interface. In that case, lowering the effect output can solve the problem because it reduces the signal before the overloaded receiving stage.

The location of the control matters as much as its label. A knob that changes volume after clipping is not a cure for that clipping.

A short diagnosis you can repeat

Start with the simplest working chain and one effect. Compare active and bypassed sound at similar listening levels. Use your strongest normal playing attack and your loudest intended channel, not only a lightly picked clean passage.

If the unwanted distortion appears when the effect is added, reduce the signal feeding it. If that cleans up the sound, restore listening volume with a suitable control after the effect, gradually and within the downstream equipment’s limits.

Next, compare a simple low gain preset with the original preset. A problem limited to one patch suggests its processing or output settings deserve attention. A problem across every patch may point further upstream, though it is not conclusive by itself.

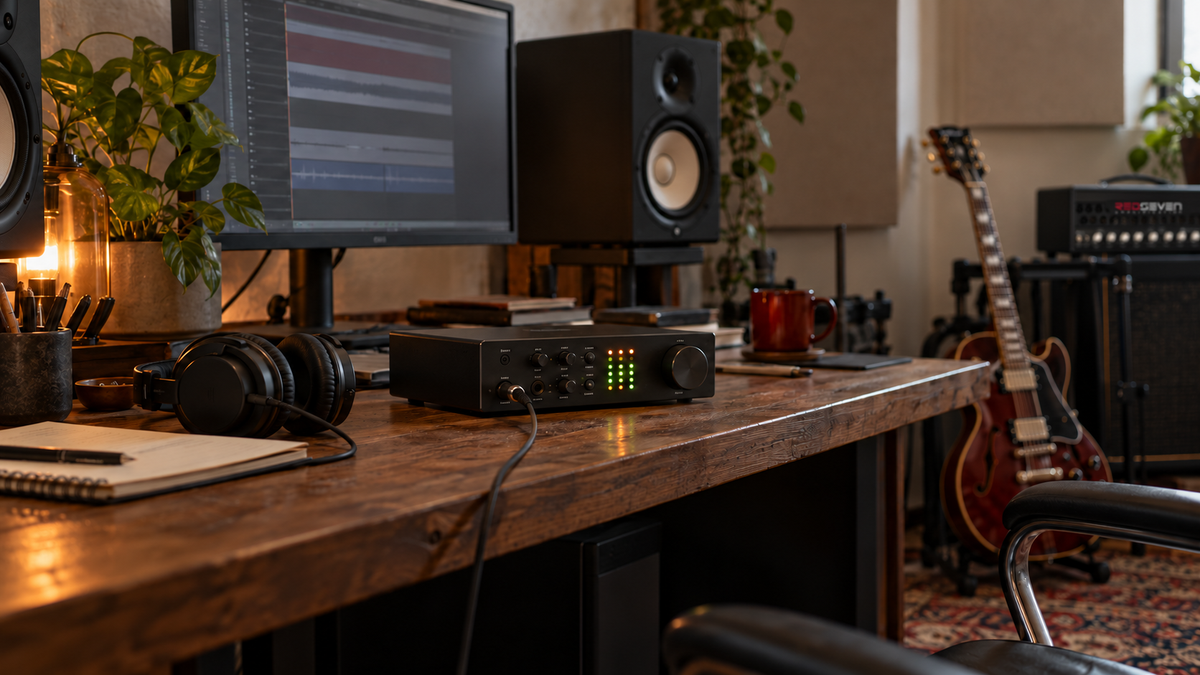

Finally, check the level entering the return or interface. Clip indicators help when available, but absence of an indicator is not proof that every earlier analog stage is clean. Listen while changing one control at a time and keep notes on what changes the fault.

The Duality 100 as a practical example

The Duality 100 manual specifies a buffered series loop at instrument level. Its Channel Volume affects the send level, while its Master Volume sits later in the chain.

If a connected effect overloads, reducing Channel Volume lowers the signal reaching that effect. The master can then be adjusted to restore the desired listening level, provided the later stages still have sufficient headroom. Lowering the master alone will not repair clipping that has already happened at the effect input.

This does not mean every pedal is guaranteed to work at every channel setting. Instrument level is a useful compatibility description, not an unlimited headroom promise.

For the broader placement question, see what belongs in an effects loop.

Preamps and mixers need the same attention

The D100PRE provides an output labelled +4 dB and an attenuated output labelled −10 dB. The latter can be useful when feeding equipment that needs a lower signal, but neither label guarantees compatibility with every pedal or amp return.

Begin with conservative channel volume and check the receiving device’s requirements. The D100PRE setup guide applies this to its main connection options without treating a preamp output as a speaker output.

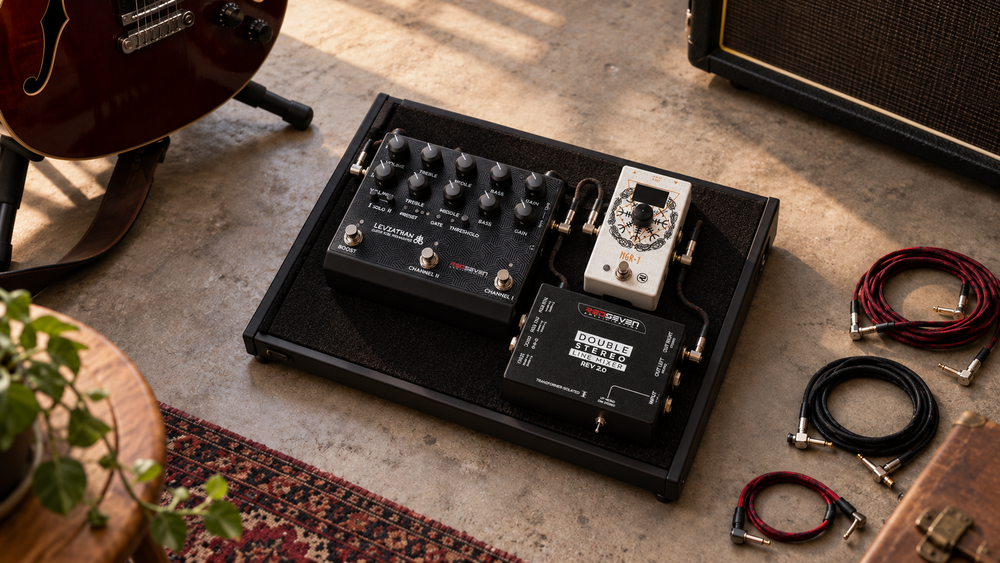

The Double Stereo Line Mixer manual specifies nominal +4 dBu operation and support for instrument level signals. That does not establish that every effect connected to its send can accept any level the source provides. Each connection still has a source and a receiving input to consider.

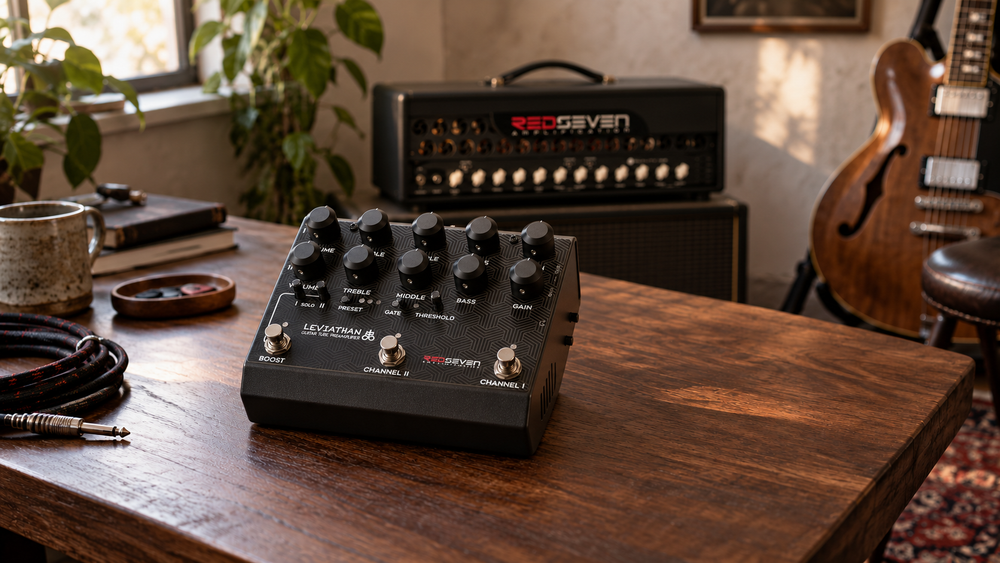

With the Leviathan Preamp, channel settings and IR level affect the processed path and effects sends. Changing a preset can therefore change how strongly a connected effect is driven. Check the loudest combinations you plan to use, including boost states.

Do not confuse clipping with a routing fault

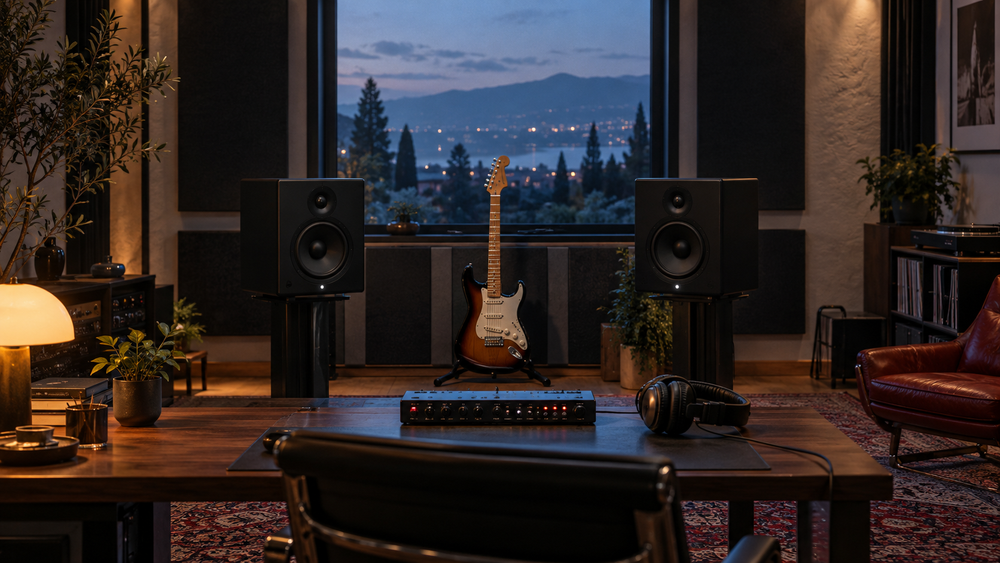

A hollow, phasey change in a parallel rig can come from a duplicated dry path rather than excessive level. In that case, lowering volume may conceal the problem without correcting it. Check kill dry and parallel effects before treating every tonal change as overload.

The goal is not to run every knob as low as possible. Excessively weak signals can make noise more noticeable when you compensate later. Aim for healthy levels that leave room for real playing peaks and preset changes, then make the final loudness adjustment at an appropriate point in the chain.
