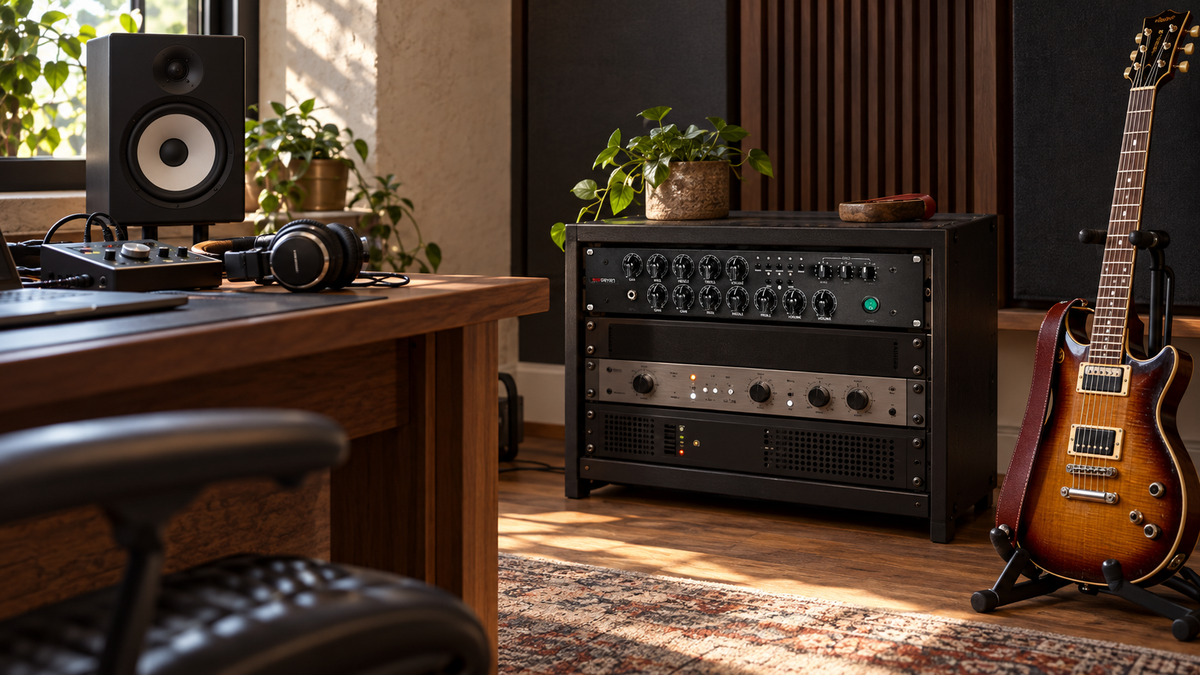

D100PRE Setup Guide: Amp Return, Power Amp and Recording Rig

The D100PRE is a tube preamp. It supplies the gain structure and tonal shaping at the centre of a rig, but it does not replace every stage needed to hear a guitar.

For a conventional guitar cabinet, you still need a suitable power amplifier. For direct recording, you need an appropriate interface and monitoring path, normally with cabinet processing to produce the intended amplified guitar sound.

There are three practical destinations to consider: an amplifier’s return, a separate power amp, or a direct recording chain. Choose one first, then set the output level around the equipment receiving it.

Before making the connections

Set monitoring and amplifier levels low, and follow the power and connection procedures for each device. Check the D100PRE’s mains requirements against its rear label. Do not open the unit or change internal settings as part of this setup.

Connect your guitar to either the front or rear instrument input. The manual describes these as parallel inputs and instructs you to use only one at a time.

On the rear panel, the D100PRE provides an output labelled +4 dB and an attenuated output labelled −10 dB. Select the route suited to the receiving equipment and begin with conservative channel volume. The attenuated output can help with lower level destinations, but it does not guarantee that a particular pedal or return cannot clip.

These are preamp signal outputs. Do not connect them directly to a passive guitar cabinet. Equally, never connect an amplifier’s speaker output to the D100PRE instrument input.

Route 1: use an amplifier return

Connect the selected D100PRE output to a compatible amplifier return using an appropriate signal cable. In a conventional series loop, this allows the external preamp to feed the amp’s power section instead of its usual front input path.

Check the amplifier’s manual first. Its loop may need to be enabled, its return may have a sensitivity setting, and some volume controls may sit before the return and therefore have no effect on this route. A parallel loop can behave differently and may not provide the same straightforward replacement path.

Keep the amplifier connected to the correctly matched cabinet or approved load required by its manufacturer. Feeding the return does not remove the power amplifier or its load requirement.

Bring up the D100PRE channel volume and the amplifier’s applicable downstream volume control gradually. If you hear unintended clipping, reduce the signal entering the return before making a judgement about the tone. Some returns are more sensitive than others.

This route is useful when you want the D100PRE voice while retaining a power amp and speaker cabinet you already use. It is different from connecting the D100PRE to the amplifier’s front input, where the amp’s own preamp also remains part of the sound.

Route 2: use a separate power amplifier

Connect a suitable D100PRE output to the power amplifier’s signal input. Connect the power amplifier to its compatible cabinet using the speaker connection and load arrangement specified by that amplifier’s manufacturer.

The preamp to power amp connection and the power amp to speaker connection perform different jobs. Use suitable signal cabling for the first and suitable speaker cabling for the second.

Set the power amplifier conservatively and establish a usable D100PRE channel balance before increasing listening volume. A rig that works on its clean channel can still overload a downstream input on a louder lead setting, so test every switching state you intend to use.

If you want delay or reverb after the preamp, compatible effects can be placed between the D100PRE output and the power amplifier input. This is an external signal chain, not a dedicated send and return loop on the D100PRE. Confirm the effect’s input headroom and output capability before adding it.

For several effects, decide whether you want them to process one another or sit on independent branches. The guide to series and parallel routing explains the difference.

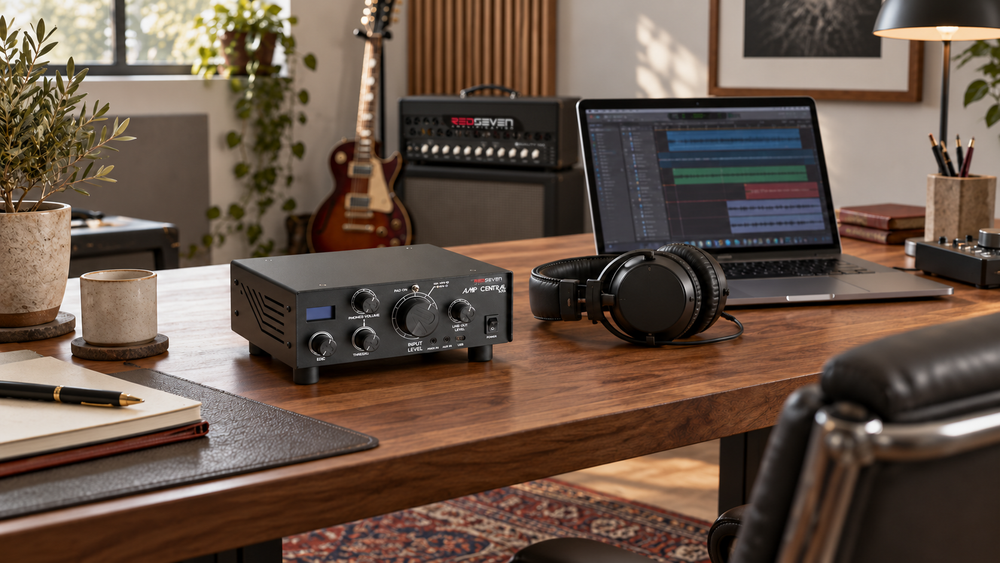

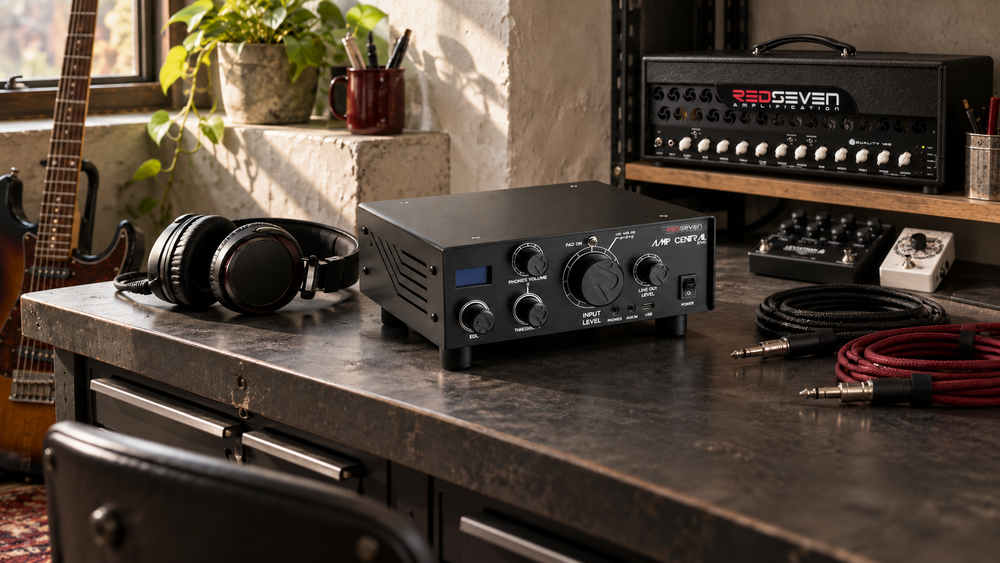

Route 3: record with Amp Central EVO

Amp Central EVO provides a recording route for a preamp through its LINE IN. Connect a suitable D100PRE output to that input, begin with conservative levels and use the EVO’s main output path to feed an appropriate interface input with suitable gain settings. The EVO manual describes these main outputs as instrument level and recommends a microphone preamp or suitable gain stage for recording. Do not assume they have the same level as its separate LINE OUT.

Use LINE IN for this connection, not FROM AMP OUT. FROM AMP OUT is the EVO connection intended for an amplifier’s speaker output. The D100PRE does not produce that type of signal.

The EVO manual describes power amp simulation for use with its line input. Select the desired simulation and cabinet IR processing for the recorded sound. You can monitor through the EVO’s headphone path or an appropriate interface monitoring setup, with volume kept low while establishing the signal.

In this configuration, there is no physical guitar power amplifier being driven. The EVO’s load function is therefore not being used to absorb the D100PRE output as if it were a head’s speaker output.

Avoid adding another cabinet simulation later unless you intentionally want the combined filtering. Check your interface and recording software for processing that may already be active. Also avoid monitoring the same signal through two paths with different delays, which can make the guitar sound doubled or hollow.

An alternative recording path with software

You can also feed a suitable interface input from the D100PRE and apply the desired cabinet processing in software. Check the interface’s accepted level and choose the appropriate input mode. The D100PRE output is not a microphone connection simply because an interface offers microphone sockets.

Start with the interface gain low and watch for clipping during your strongest playing. Use a single intended monitoring path. If you want to hear the processed software sound while recording, account for the interface buffer and monitoring latency.

A cabinet IR supplies cabinet and microphone related filtering. It does not itself turn the D100PRE into a physical power amplifier. Any additional power amp modelling is a separate processing choice.

Balance channels before building presets

The clean channel has its own tone controls and volume. Vintage and Modern have separate gain and volume controls while sharing their tone section. Start with moderate gain and balance the channel volumes at the actual destination you will use.

The Lead function adds a gain stage to Vintage and Modern, not to the clean channel. Do not assume this automatically produces the right solo volume. The Solo section has its own level and tonal shaping, so check its effect on both loudness and downstream headroom.

MIDI can recall switching combinations, but that should not be confused with motorised or digitally recalled positions for the physical gain and EQ knobs. Build a useful base sound first, then organise the switching around it.

If a connection is noisy, unexpectedly quiet or distorted, simplify to one channel and one destination. Our guide to signal levels and clipping helps separate an overloaded input from a tone setting. Once that basic route works, add effects and switching one stage at a time.
