Guitar Amp Impedance Matching Heads Cabinets and Load Boxes

Before connecting a tube amplifier to a cabinet or load box, identify the load the amplifier will actually see. Match that load to the amplifier’s specified output and check the relevant power limits. Connector shape alone tells you none of this.

The familiar 4, 8 and 16 ohm labels describe nominal impedance. They are not volume settings. Selecting a different output impedance is not a method of turning an amplifier down.

Read the output and the load together

On a tube amplifier, speaker sockets or an impedance selector identify the intended load for a particular connection. A cabinet label describes the cabinet’s nominal impedance in its selected mode. A load box has its own specified impedance and operating requirements.

With one ordinary cabinet, an amplifier output specified for an 8 ohm load would normally be matched to an 8 ohm cabinet. The amplifier and cabinet manuals remain the authority, especially when there are multiple sockets or selectable mono and stereo modes.

Do not adopt a blanket rule that one direction of mismatch is always safe. Output-stage design matters. Rules for conventional transformer-coupled tube amplifiers should not be transferred automatically to solid-state amplifiers, which may specify minimum loads instead.

Nominal impedance is not DC resistance

A speaker’s impedance changes with frequency. The nominal value is the connection rating used to match equipment, rather than a statement that its impedance is exactly the same at every frequency.

A multimeter’s resistance reading is therefore not expected to equal the cabinet’s nominal impedance exactly. If a cabinet has been rewired or its label is missing, do not guess its rating from an unfamiliar reading and connect an expensive amplifier. Have the wiring and intended impedance confirmed by a qualified technician.

This frequency-dependent behaviour is also relevant to how reactive load boxes work. However, selecting an IR does not change a hardware load’s rated impedance. An IR named after a 16 ohm cabinet does not turn an 8 ohm physical load into 16 ohms.

Adding a second cabinet changes the calculation

Multiple speaker sockets are often connected in parallel, but you must verify that for your amplifier. Two equal 16 ohm cabinets connected in parallel present a combined nominal load of 8 ohms. Two equal 8 ohm cabinets in parallel present 4 ohms. Those examples apply only when the connection is actually parallel.

A cabinet with mono and stereo switching can present different loads depending on its switch position and which sockets are in use. Read the labels for the selected mode. Do not assume two sockets mean two independent inputs, or that connecting to a second cabinet preserves the first cabinet’s impedance.

For a more complex setup, write down every connection and follow the equipment manuals. A generic internet diagram cannot account for every amplifier output arrangement or switching cabinet.

What changes when you insert Amp Central EVO

There are two distinct configurations to check.

For silent operation on the internal load, Amp Central EVO provides a 100 W RMS, 8 ohm load. Connect the compatible amplifier’s 8 ohm speaker output to FROM AMP OUT and leave TO SPEAKER empty, following the manual’s power limits.

When a jack is inserted into TO SPEAKER, the internal load is bypassed. The connected cabinet becomes the amplifier’s load. Match the amplifier output to that cabinet and follow the requirements for the complete cabinet and attenuation configuration. The internal load’s 8 ohm rating is not a universal setting to apply regardless of which cabinet is connected.

A cable left in TO SPEAKER with nothing connected at the far end is particularly problematic: the jack has bypassed the internal load without providing the intended cabinet. Make load-path changes with the amplifier switched off and verify both ends before returning to operation.

Our Amp Central EVO recording setup uses the internal-load configuration throughout. The attenuator and load box comparison explains why cabinet listening and silent recording need different checks.

Power rating and cabling are separate checks

Matching impedance does not guarantee adequate power handling. Check the load or cabinet’s power rating and the amplifier manufacturer’s guidance. Do not treat a nominal amplifier rating as permission to exceed a load’s operating limits by driving the amplifier harder.

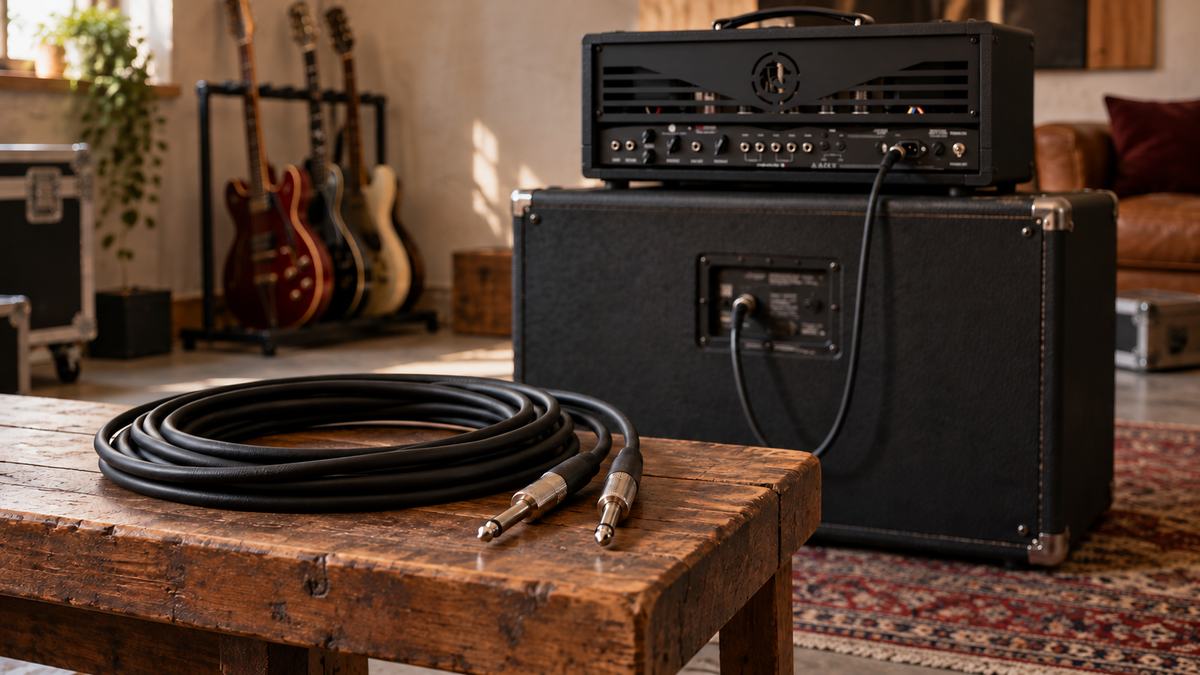

Use suitable speaker cables for the path carrying power from the amplifier. An ordinary shielded guitar cable is intended for a different job, even though it may have the same quarter-inch plug. The recording outputs after a load box use signal cables appropriate to those outputs, not a rule that every cable in the rig must be a speaker cable.

Before switching on, confirm the selected amplifier output, the connected load, the power rating, the cable type and every load-bypass connection. Then leave those connections in place while playing. A quiet monitor is a reason to check the audio path, not to pull out the speaker cable while the amplifier is operating.
